Configuring Logical Volume Manager (LVM)

Configuring Logical Volume Manager (LVM)


Applies to:

All versions of Cryptshare Virtual Appliance

Purpose:

This is an example on configuring LVM on Cryptshare Appliances

Solution:

1. log in as root on your appliance

2. run the command yast

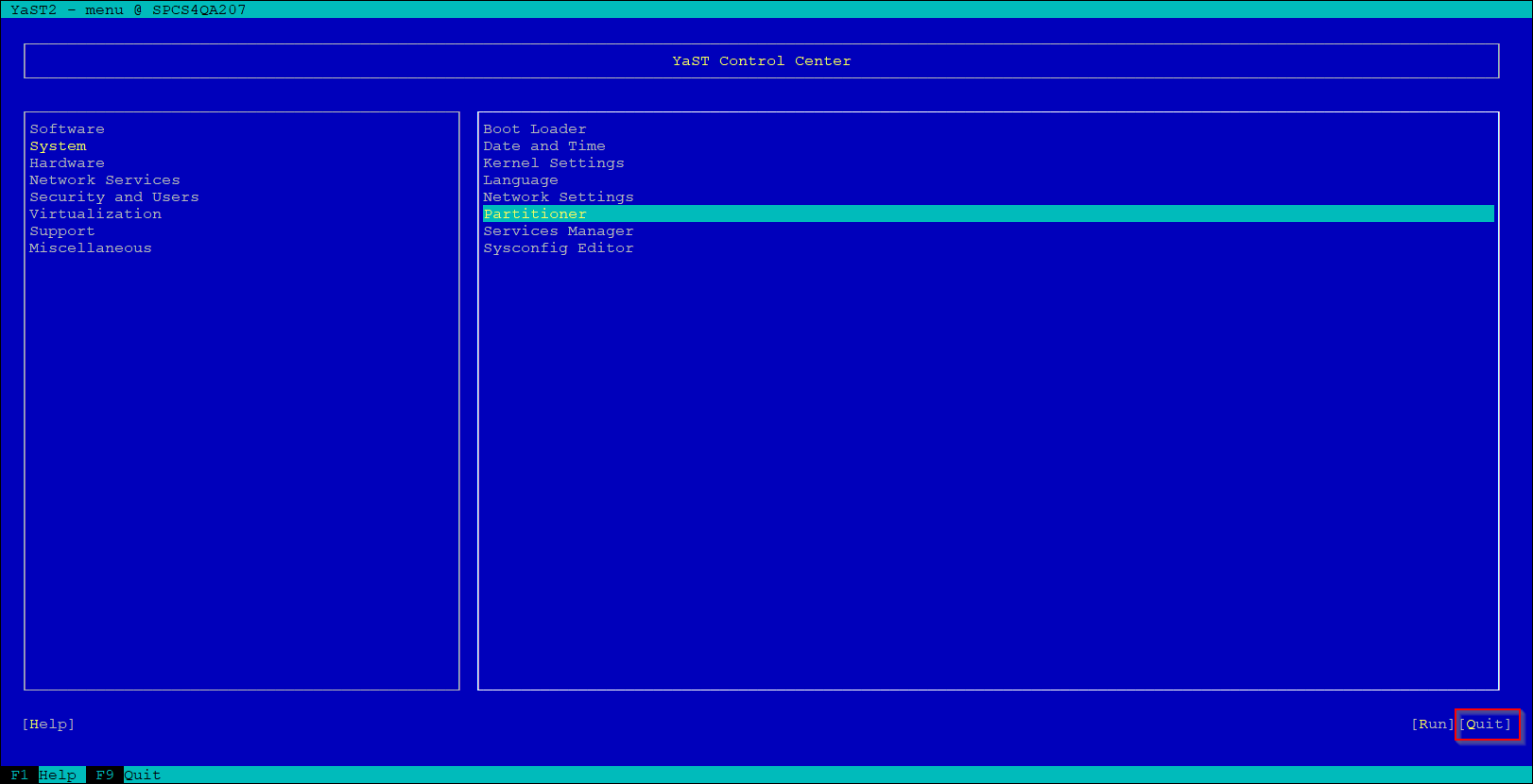

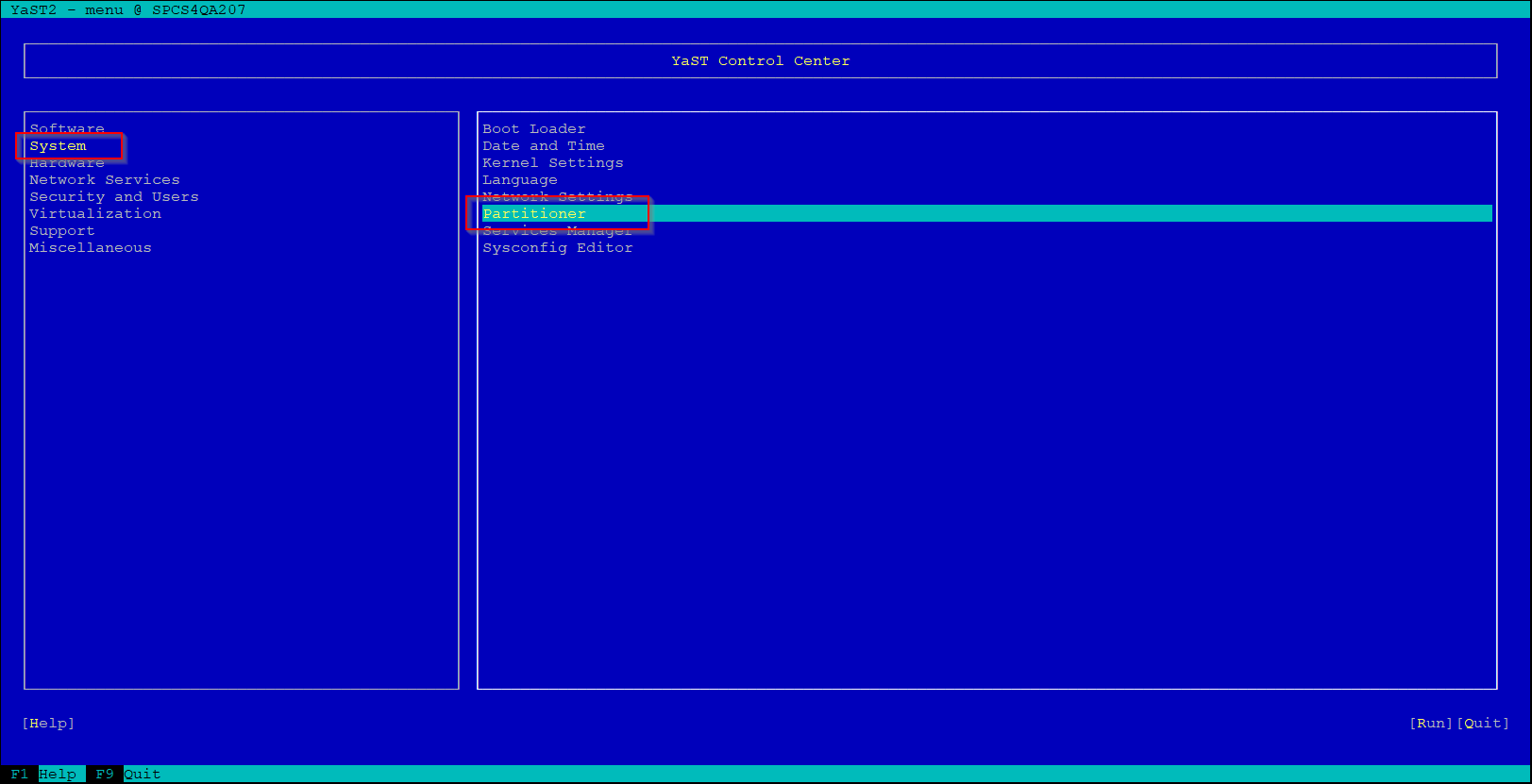

3. navigate to System → Partitioner and press Enter 74384686.png

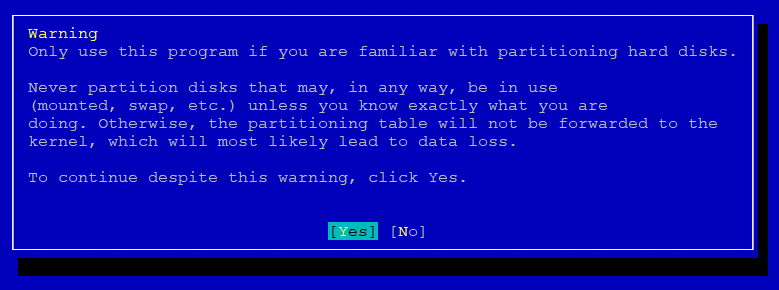

4. press Enter to agree the Warning 74384688.png

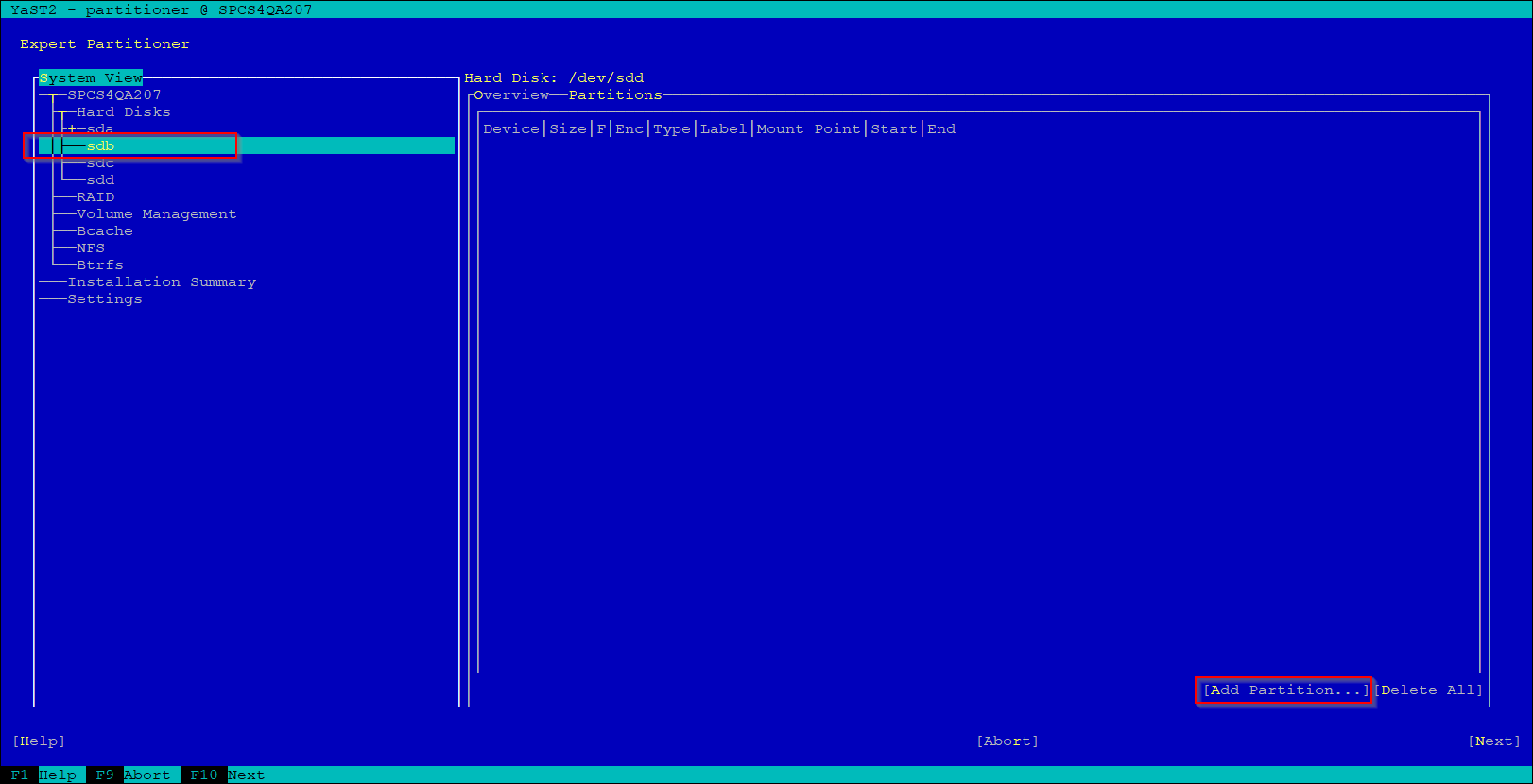

5. navigate to virtual disk which will be used for LVM

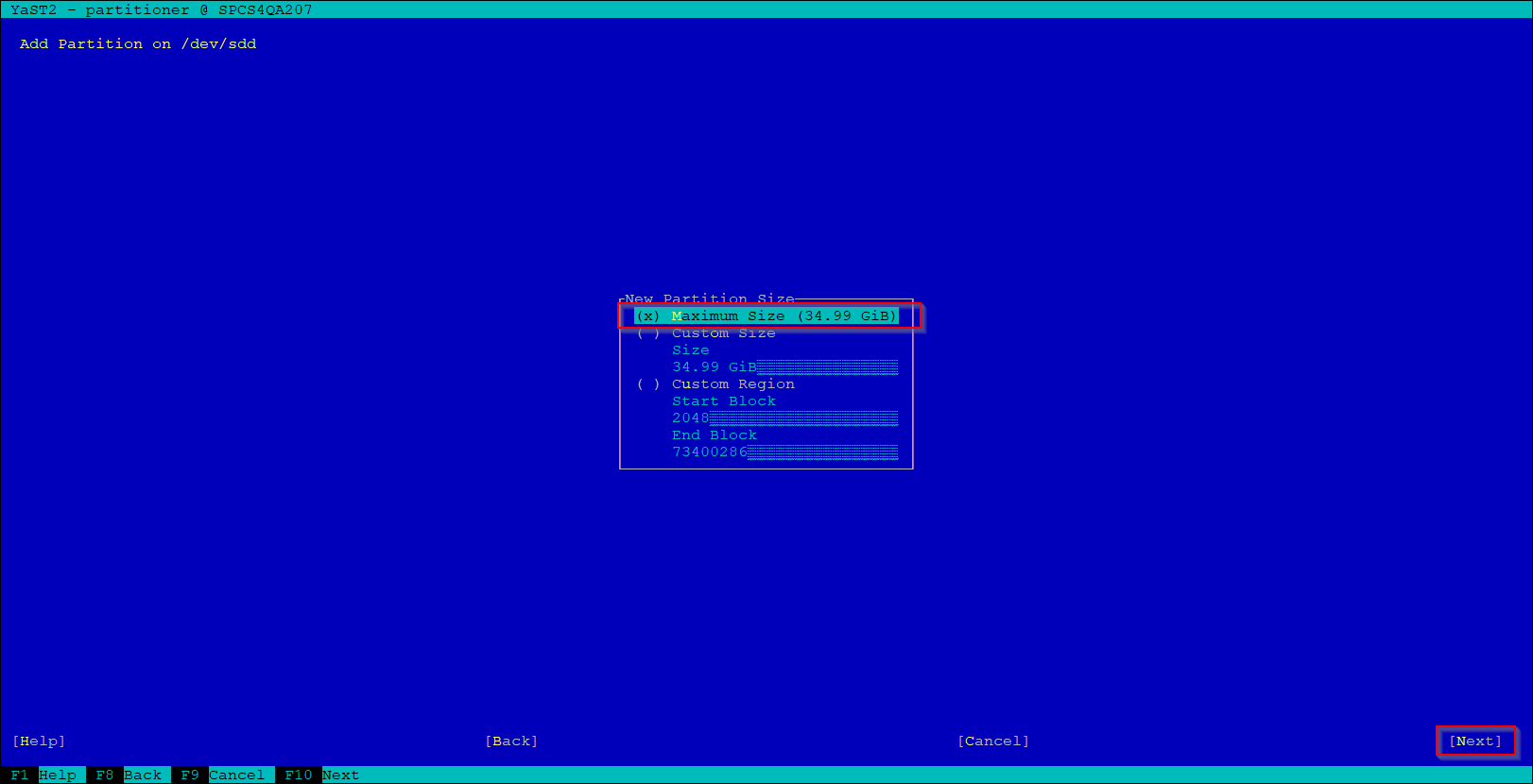

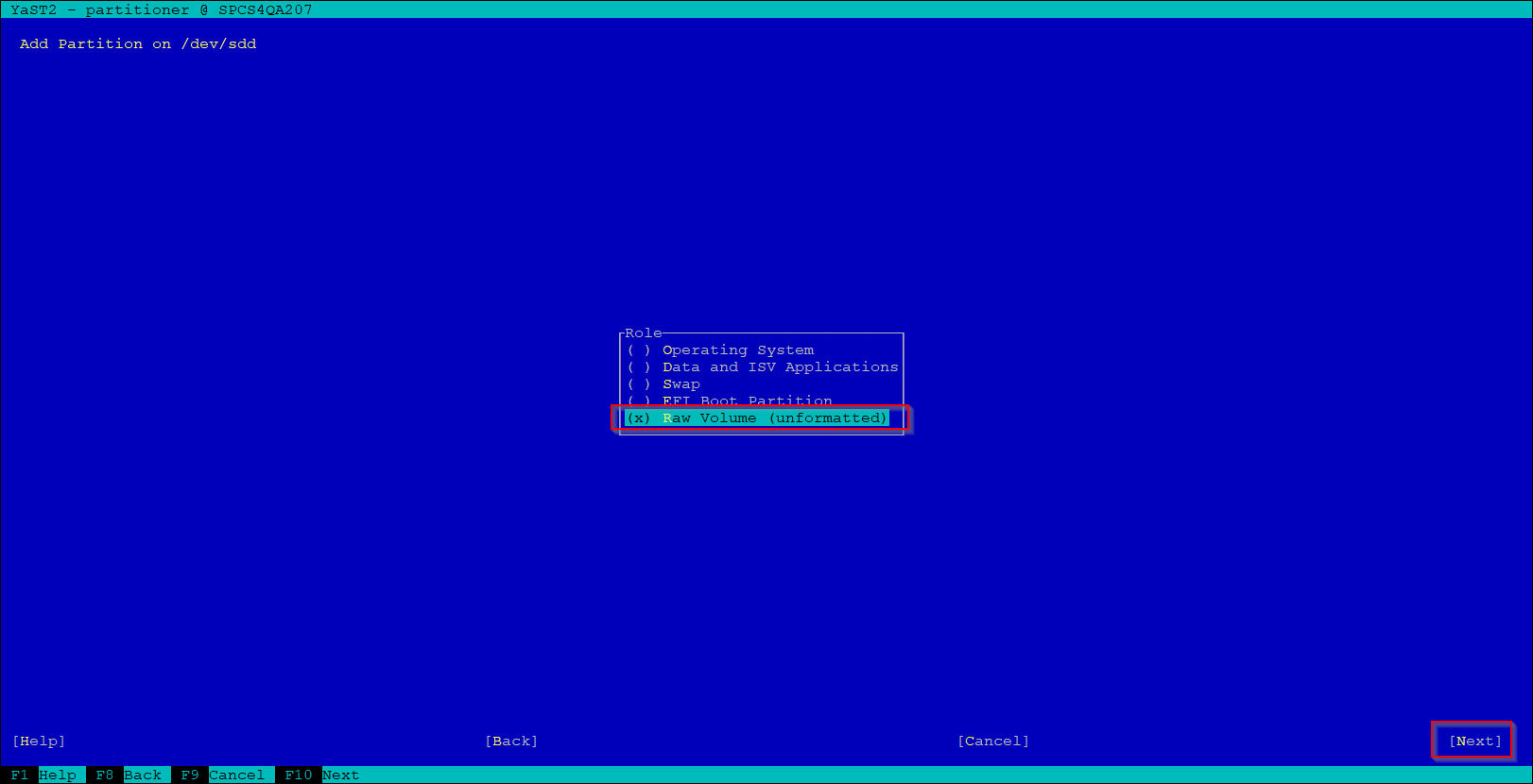

6. add new partition as Raw Volume (unformatted) 74384695.png74384696.png

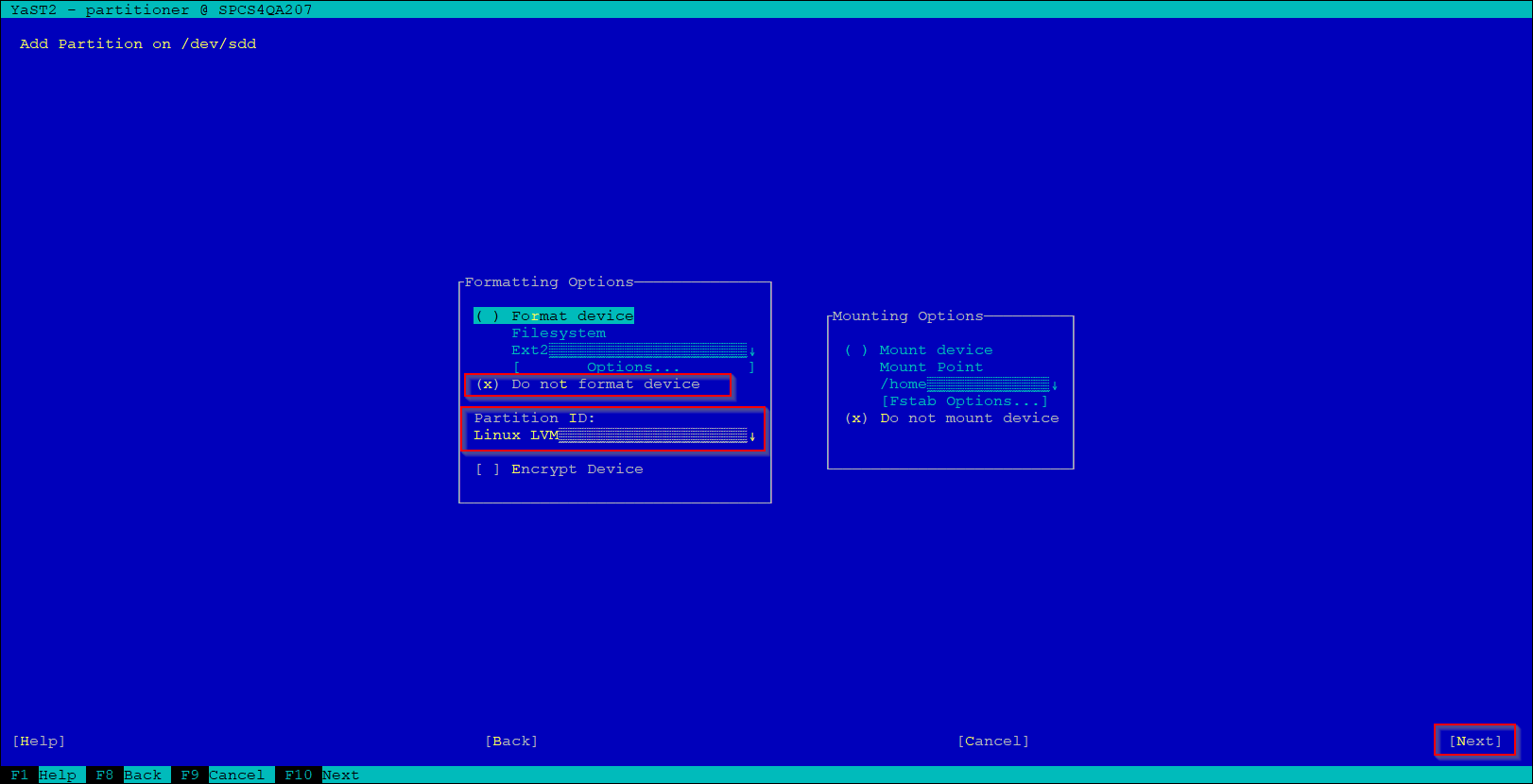

7. do not format device and select Linux LVM as Partition ID 74384698.png

8. repeat steps 5, 6 and 7 for all disks which will be used for LVM

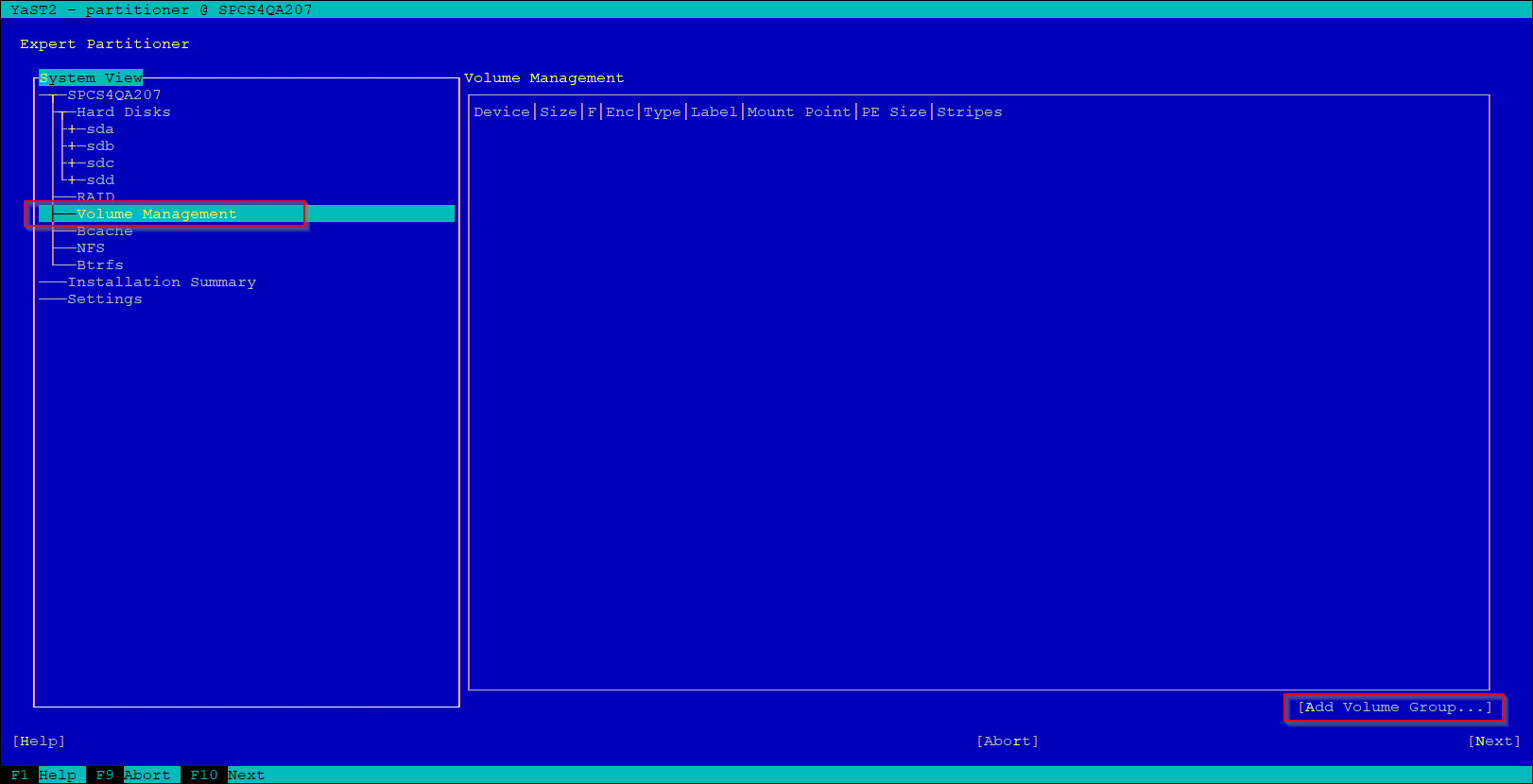

9. navigate to Volume Management and create new Volume Group

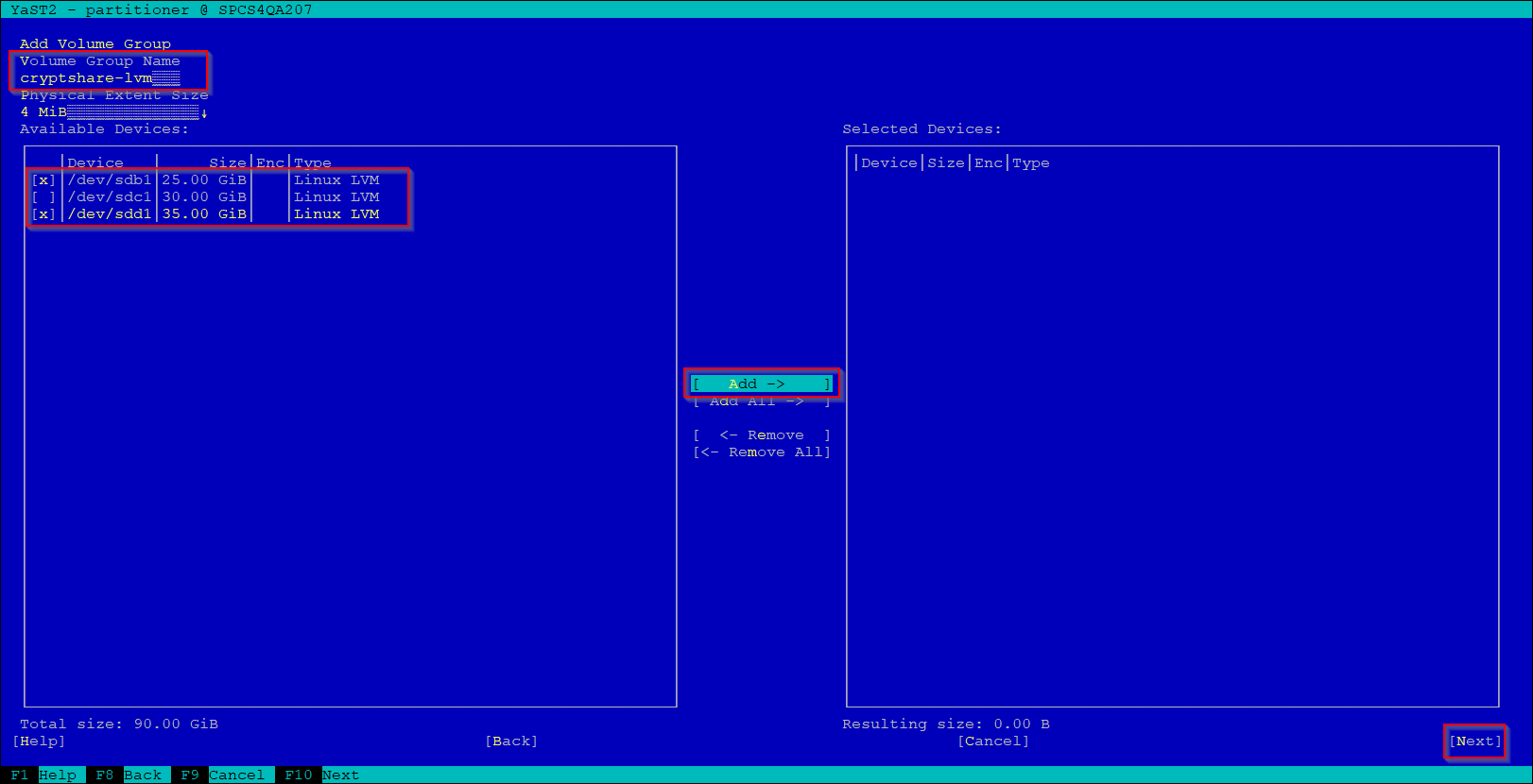

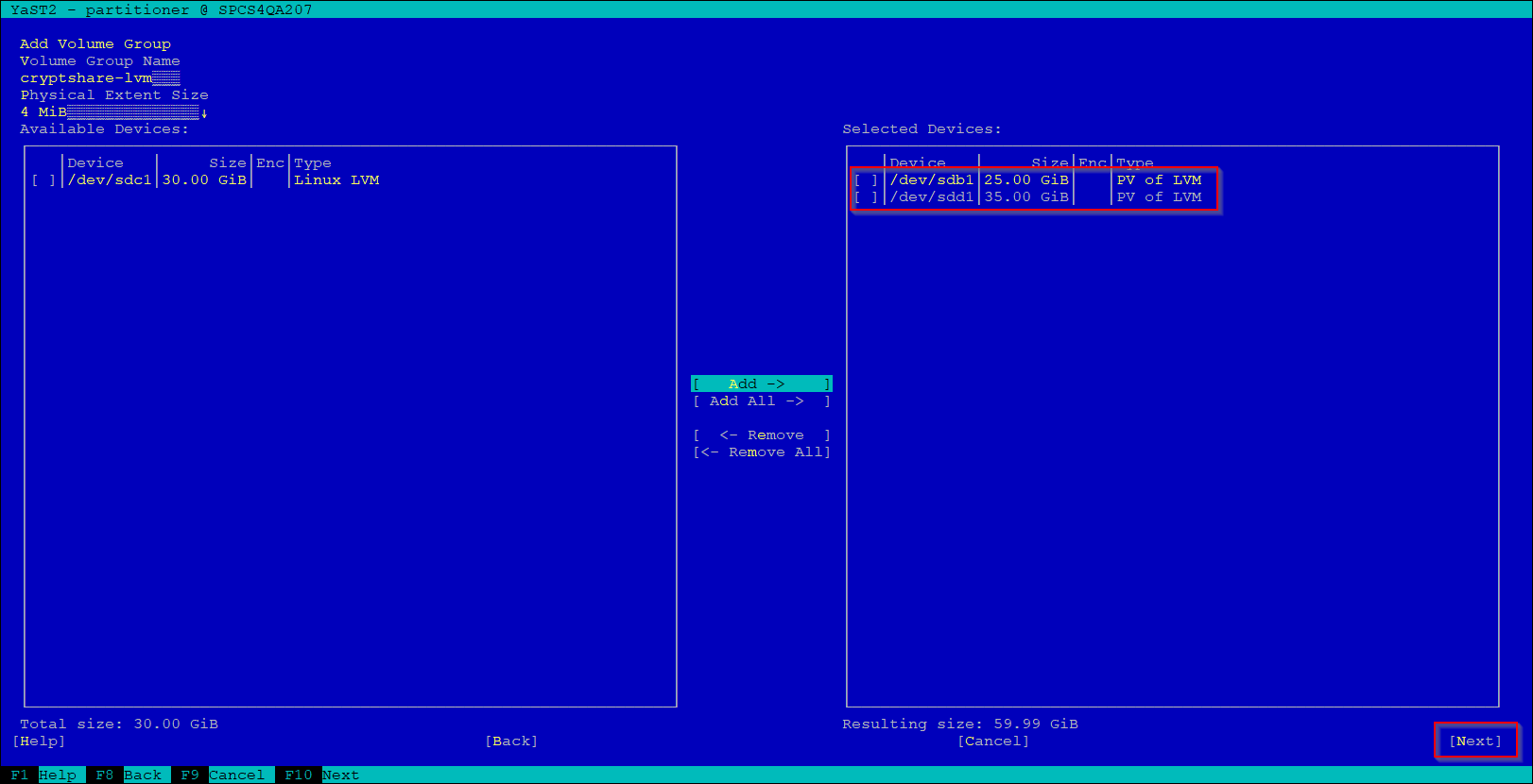

74384699.png 10. enter the volume name, select and add previously configured disks

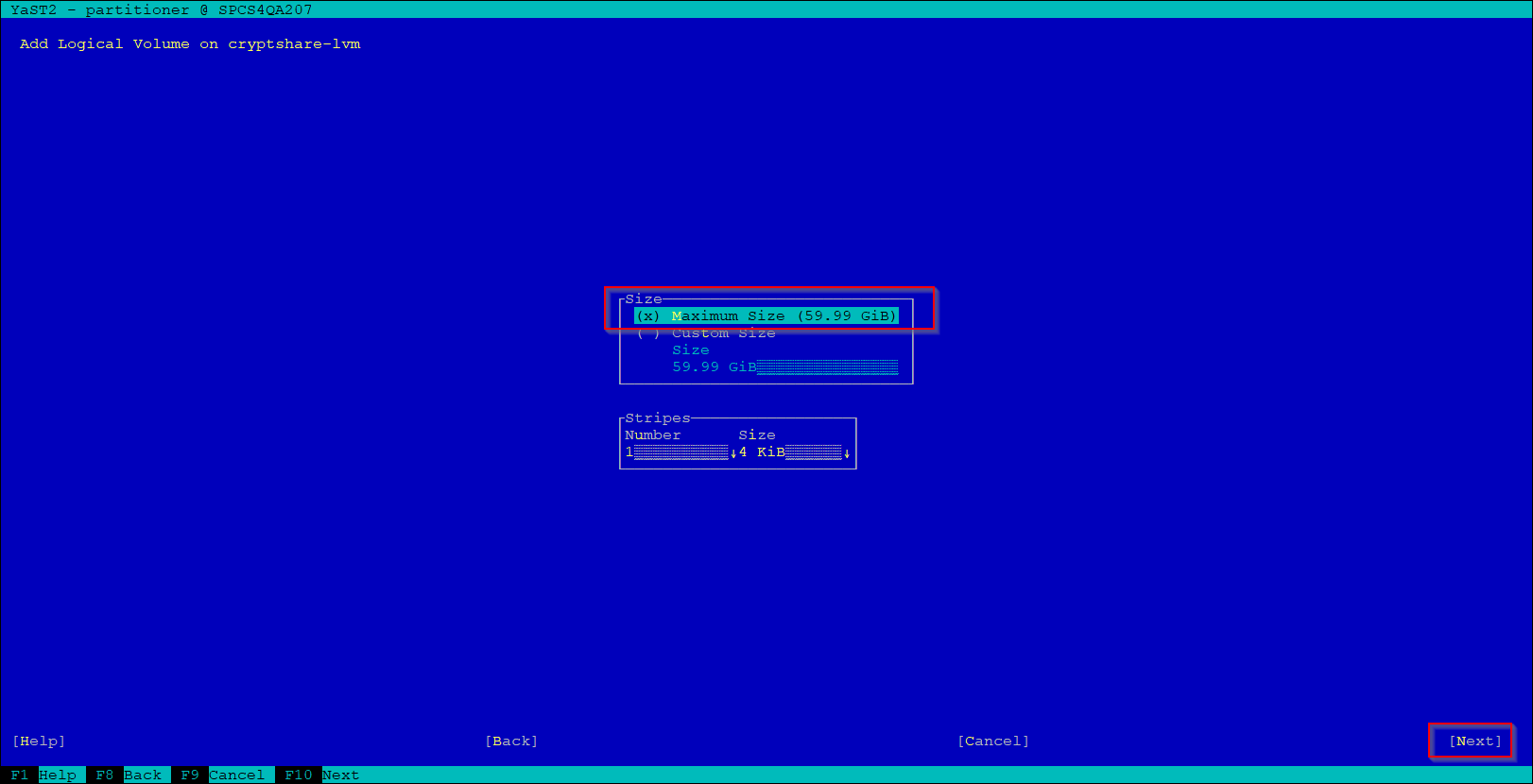

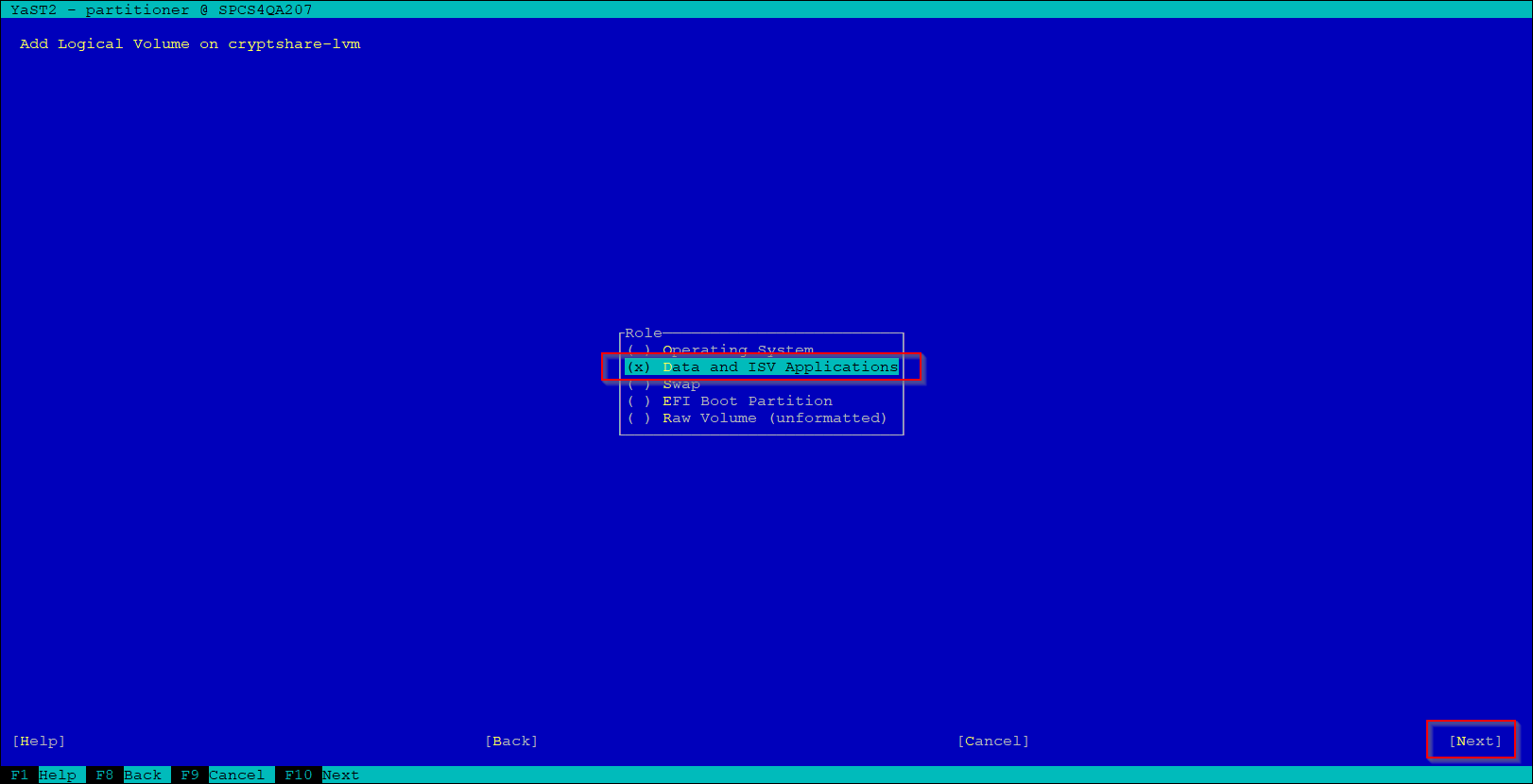

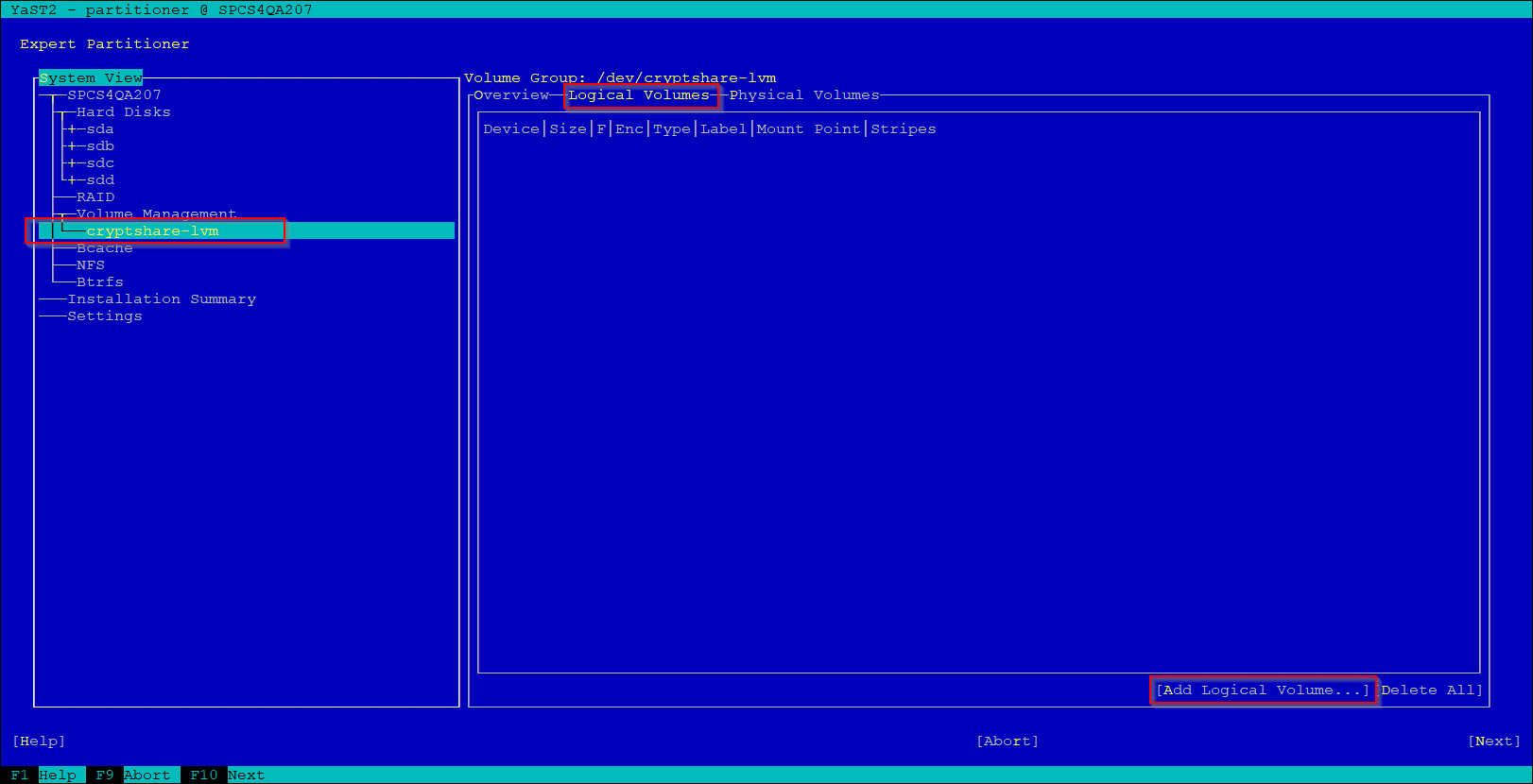

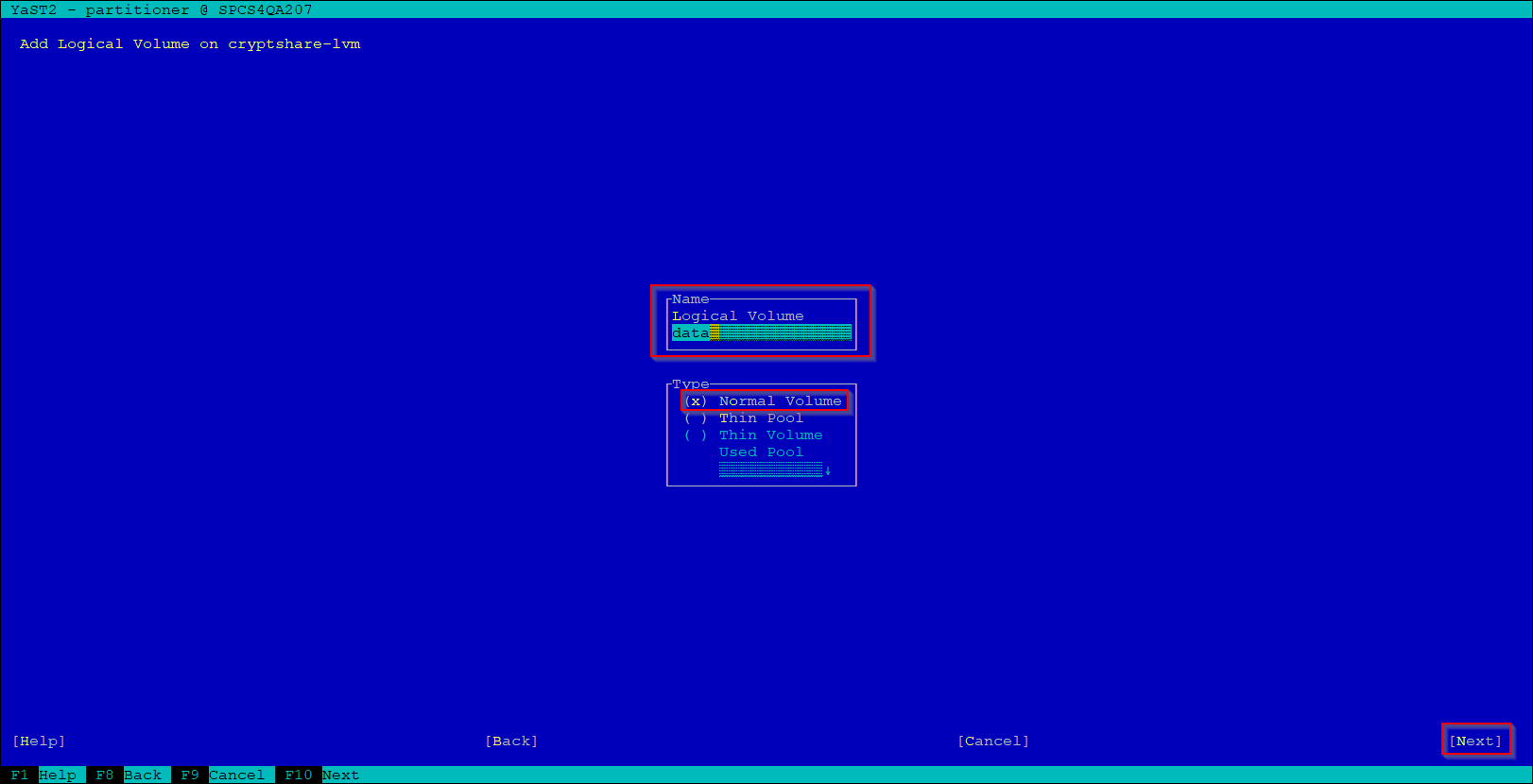

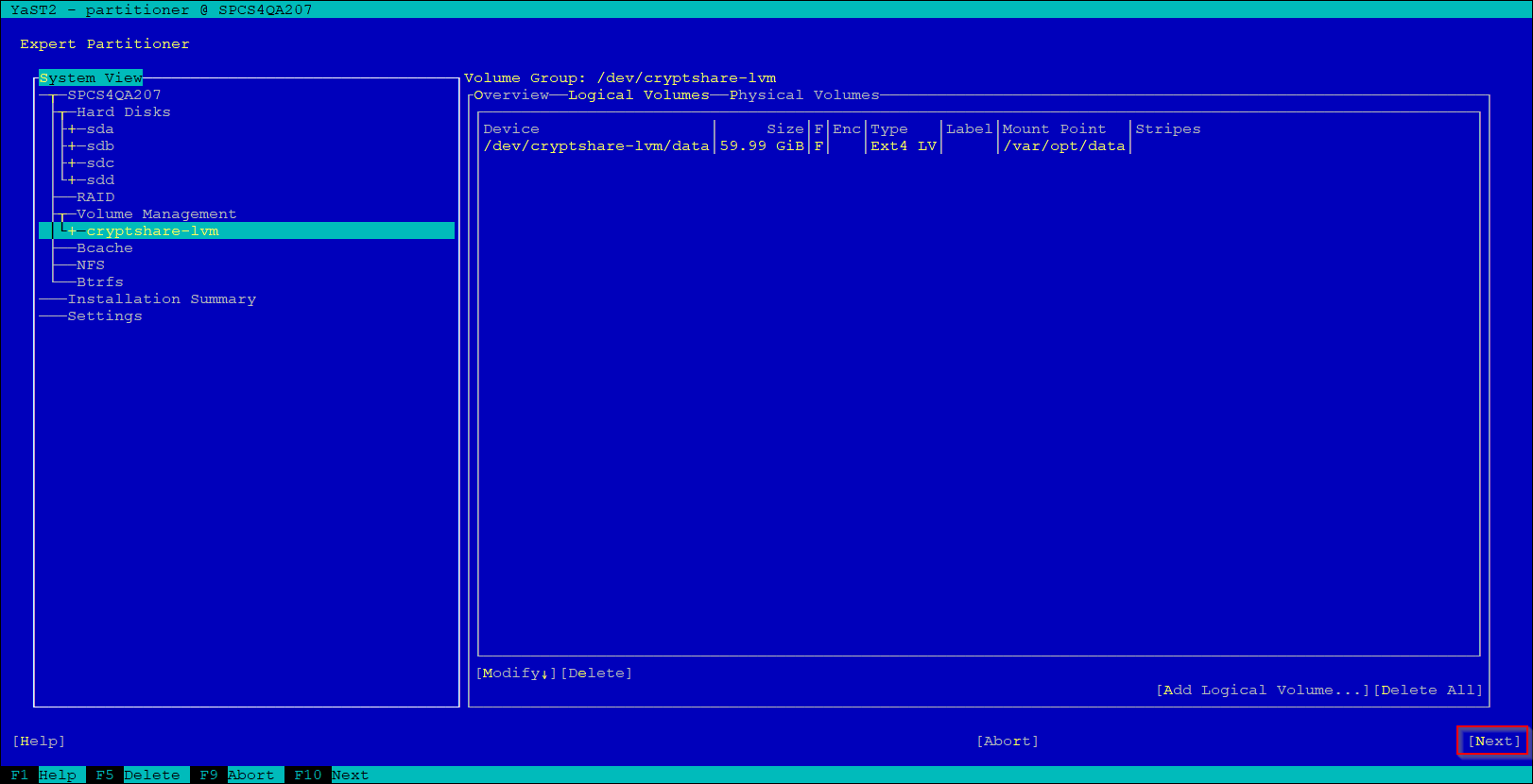

11. create new Logical Volume on the volume group

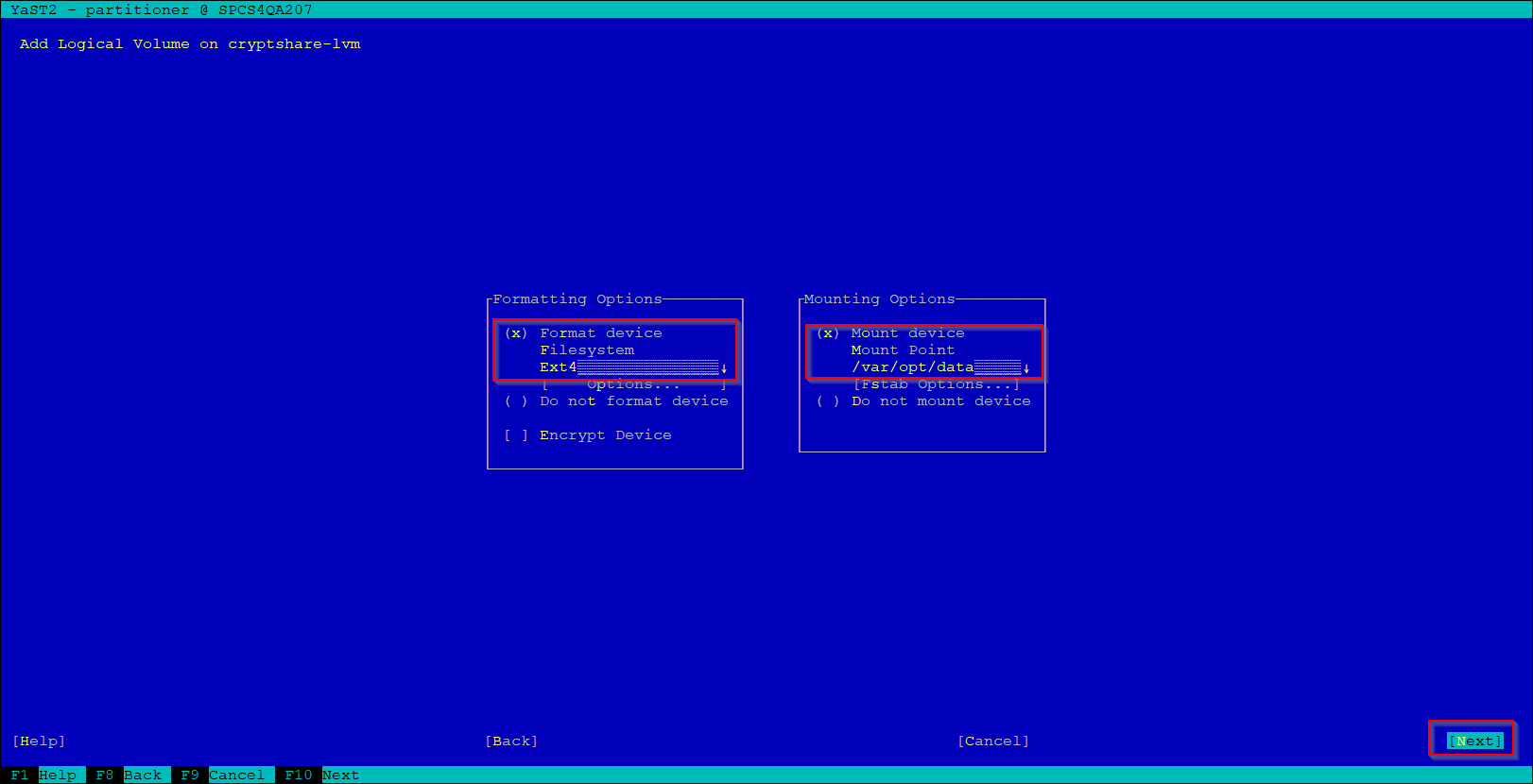

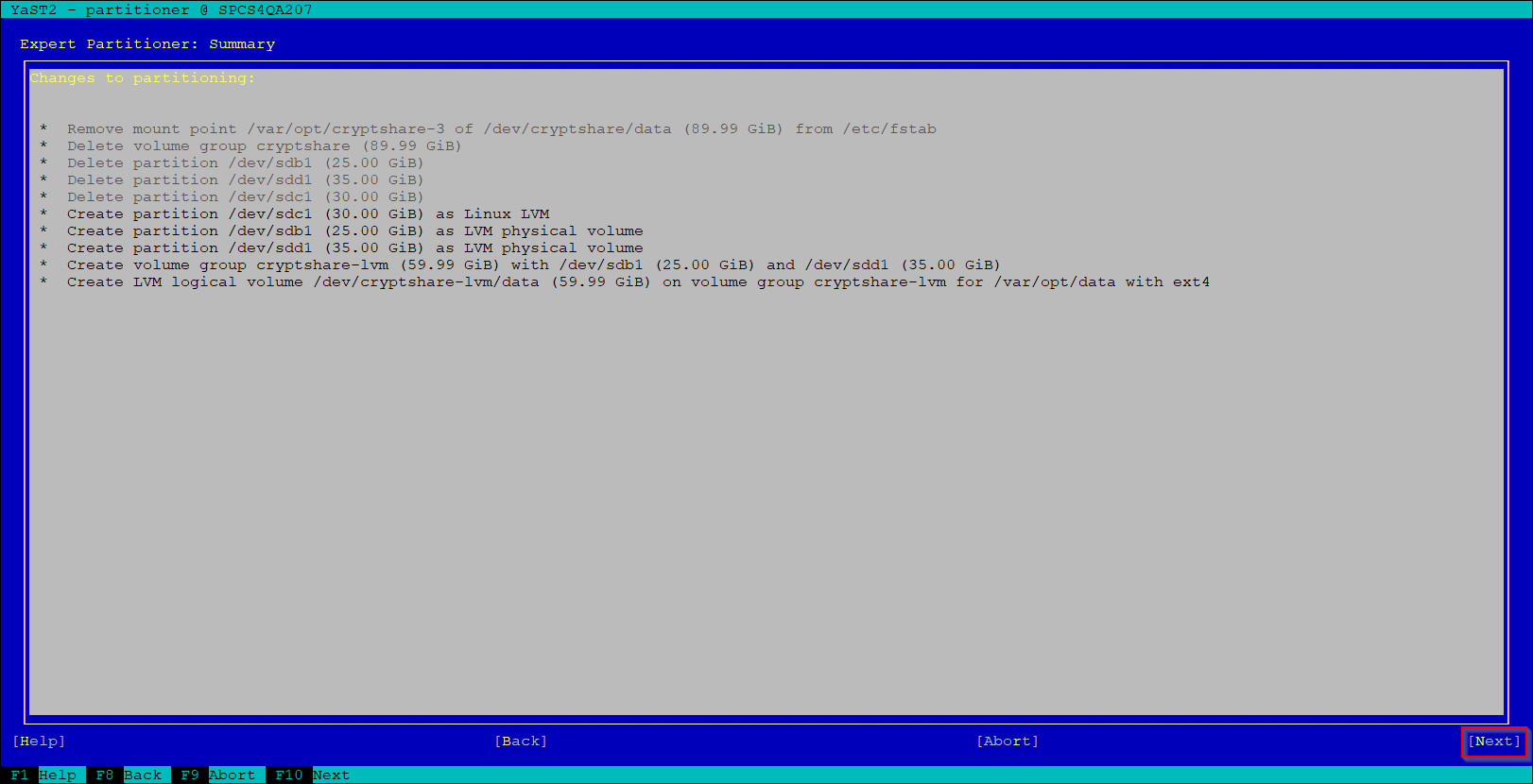

12. format the volume e.g. as EXT4 and add a mount point you prefer, e.g. /var/opt/data

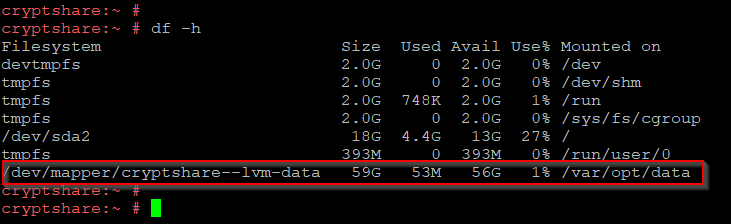

13. new volume will be mounted now


14. create needed folders on the new volume, e.g. uploads, backup and tmp and apply needed permissions

mount

cryptshare:~ # mkdir /var/opt/data/uploads
cryptshare:~ # mkdir /var/opt/data/backup
cryptshare:~ # mkdir /var/opt/data/tmp
cryptshare:~ # chown -R csuser:csgroup /var/opt/data

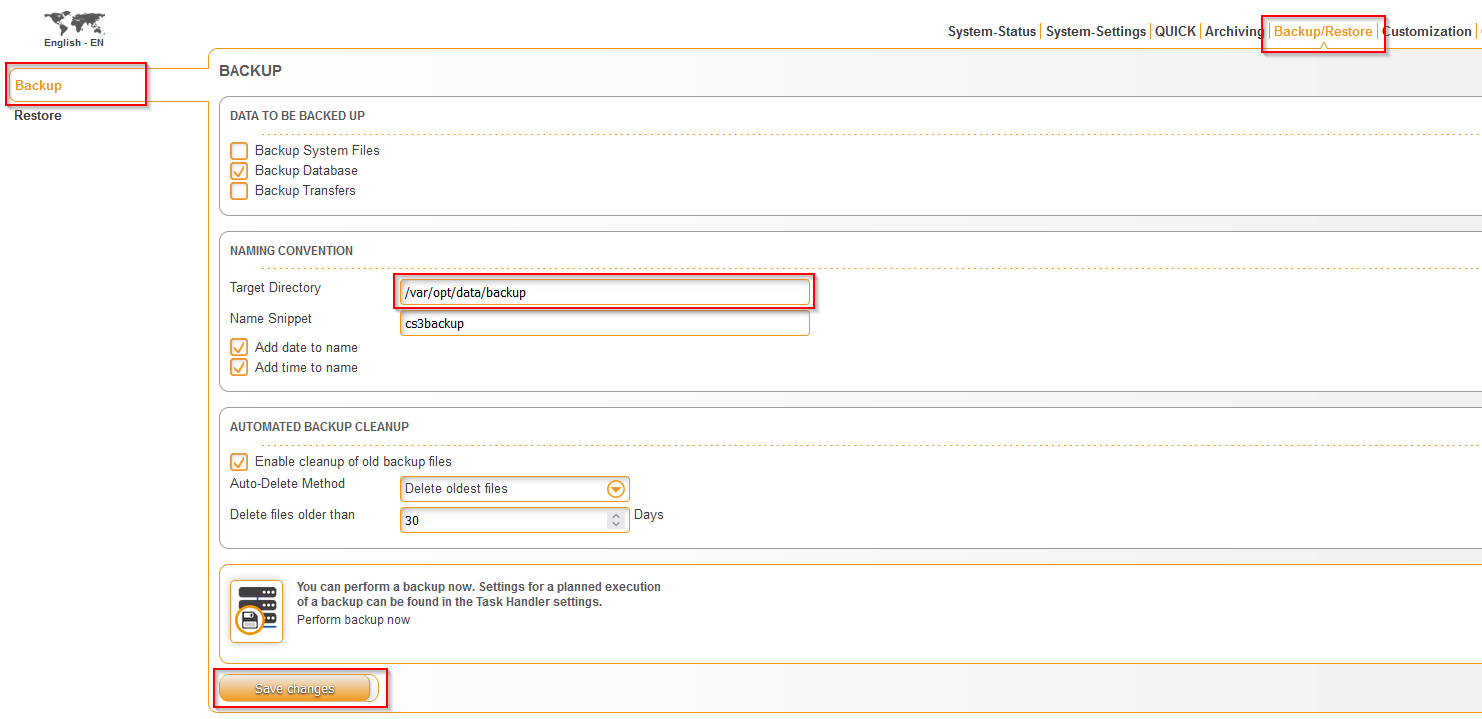

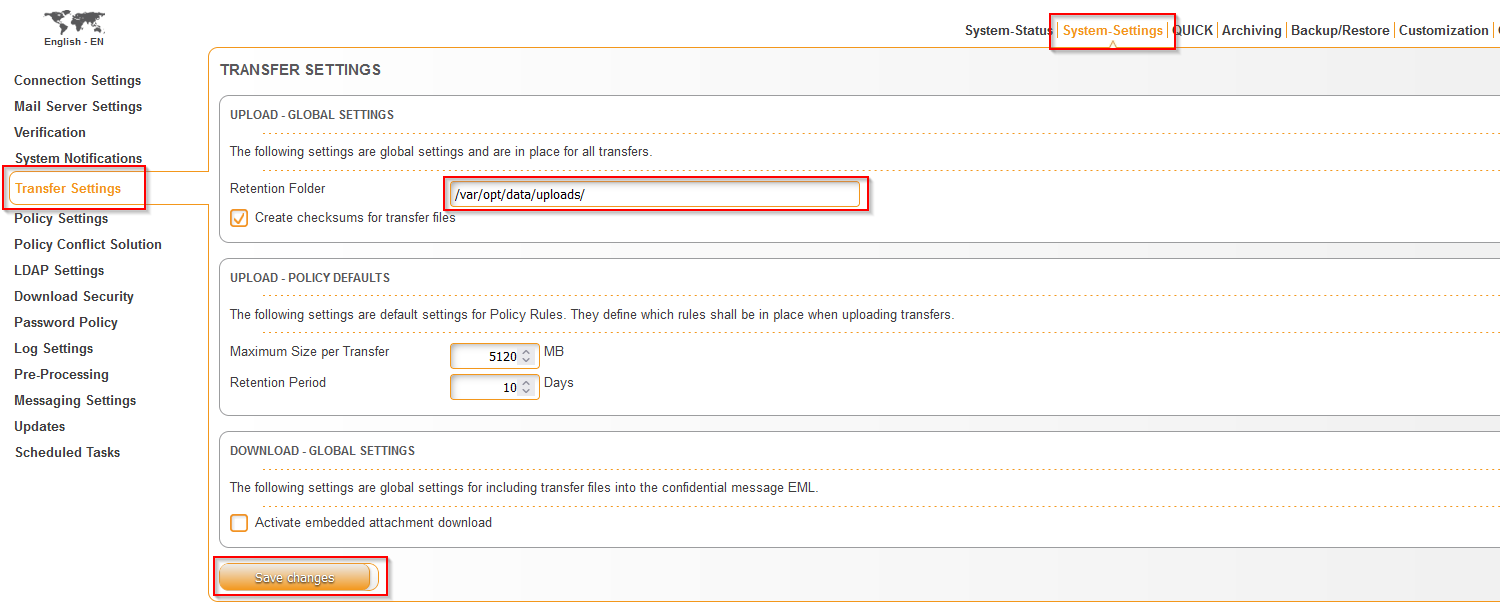

15. configure corresponding entries on Cryptshare Administration Interface


for configuring temp folder visit this page
