HTTP Connection Timeout

HTTP Connection Timeout

Applies to

Alert
All versions of Cryptshare Server

Symptom

HTTP connections are interrupted either when performing downloads or uploads. The Cryptshare error log shows messages like this one:

Notes
Logview

[...]
    at org.eclipse.jetty.util.thread.QueuedThreadPool$3.run(QueuedThreadPool.java:555)
    at java.lang.Thread.run(Thread.java:745)
Caused by: org.apache.wicket.protocol.http.servlet.ResponseIOException: java.io.IOException: java.util.concurrent.TimeoutException: Idle timeout expired: 10000/10000 ms
    at org.apache.wicket.protocol.http.servlet.ServletWebResponse.write(ServletWebResponse.java:139)
    at org.apache.wicket.protocol.http.HeaderBufferingWebResponse.write(HeaderBufferingWebResponse.java:191)
    at org.apache.wicket.request.Response$StreamAdapter.write(Response.java:148)
    at java.io.BufferedOutputStream.flushBuffer(BufferedOutputStream.java:82)
    at java.io.BufferedOutputStream.write(BufferedOutputStream.java:126)
    at com.befinesolutions.cryptshare.server.business.Crypt$Decrypter.decrypt(wk:212)
    ... 38 common frames omitted
Caused by: java.io.IOException: java.util.concurrent.TimeoutException: Idle timeout expired: 10000/10000 ms
    at org.eclipse.jetty.util.SharedBlockingCallback$Blocker.block(SharedBlockingCallback.java:234)
    at org.eclipse.jetty.server.HttpOutput.write(HttpOutput.java:141)
    at org.eclipse.jetty.server.HttpOutput.write(HttpOutput.java:378)
    at org.apache.wicket.protocol.http.servlet.ServletWebResponse.write(ServletWebResponse.java:135)
    ... 43 common frames omitted
[...]

Cause

The Client the user is currently working on, has a bad connection to the Cryptshare Server or the server load is currently to high, so that new requests cannot be handled in time. Open HTTP-Connections are running into the pre-configured connection timeout.

Solution

If the server is not under high load and should therefore be able to handle the request properly, the connection timeout can be increased so slow connections will be kept open for a longer time.

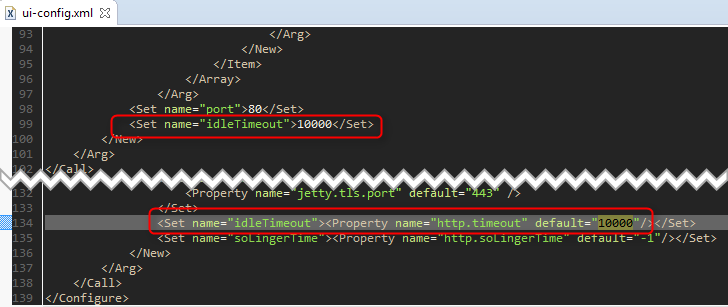

1. Open the Jetty configuration file for the User Interface:

<installation directory>/resources/WEB-INF/ui-config.xml

2. Search for a 'Set'-Tag with the attribute 'idleTimeout' (2 times).


3. Change the value from '10000' milliseconds to the preferred value (recommended maximum is '60000')

4. Save the changes and restart the Cryptshare Server
